Proxying IMAP Connections

EmailEngine provides a built-in IMAP proxy interface that allows you to connect to OAuth2-protected accounts using standard IMAP clients that don't support OAuth2. This is particularly useful for scripts, legacy applications, and standard email clients.

Overview​

The Problem​

Major email providers (Gmail, Outlook) have disabled password-based authentication:

  • Gmail: Account password authentication completely disabled for all accounts (app-specific passwords required, 2FA must be enabled)
  • Outlook/Microsoft 365: OAuth2-only authentication (IMAP passwords completely disabled)
  • iCloud: Requires app-specific passwords when 2FA is enabled

However:

  • Many IMAP client libraries don't support OAuth2
  • Scripts and automation tools expect username/password authentication
  • OAuth2 token management is complex for simple scripts
  • You don't want to store long-lived credentials on every server

The Solution​

EmailEngine's IMAP proxy provides a bridge:

Your client:

  • Connects to EmailEngine's proxy as if it were an IMAP server
  • Authenticates with account ID + short-lived access token
  • Uses standard IMAP commands

EmailEngine:

  • Looks up OAuth2 credentials for the account
  • Establishes real IMAP session with provider (OAuth2)
  • Relays IMAP session between client and provider
  • Handles token refresh automatically

Key Features​

OAuth2 Without Native Support​

Access OAuth2-protected accounts using any IMAP client:

  • No OAuth2 library required
  • Works with standard IMAP clients
  • Transparent OAuth2 handling

Short-Lived Access Tokens​

Instead of long-lived passwords:

  • Generate temporary access tokens via API
  • Tokens can be scoped (e.g., imap-proxy only)
  • Tokens can be revoked instantly
  • Tokens can be IP-restricted

Standard IMAP Protocol​

Full IMAP compatibility:

  • All IMAP commands supported
  • Works with any IMAP client
  • Use with Thunderbird, Outlook, scripts, etc.
  • No special client configuration needed (except server/port)

Centralized Management​

Manage all accounts in EmailEngine:

  • Single place for OAuth2 configuration
  • Automatic token refresh
  • Connection monitoring
  • Unified access control

Important Limitation​

IMAP Authentication Only

The IMAP proxy only works for accounts using IMAP authentication.

Accounts configured to use Gmail API or Microsoft Graph API cannot be proxied because they don't use IMAP connections internally.

If you need to proxy Gmail API or MS Graph accounts, you must reconfigure them to use IMAP/SMTP with OAuth2 instead.

Setup Guide​

Step 1: Enable IMAP Proxy in EmailEngine​

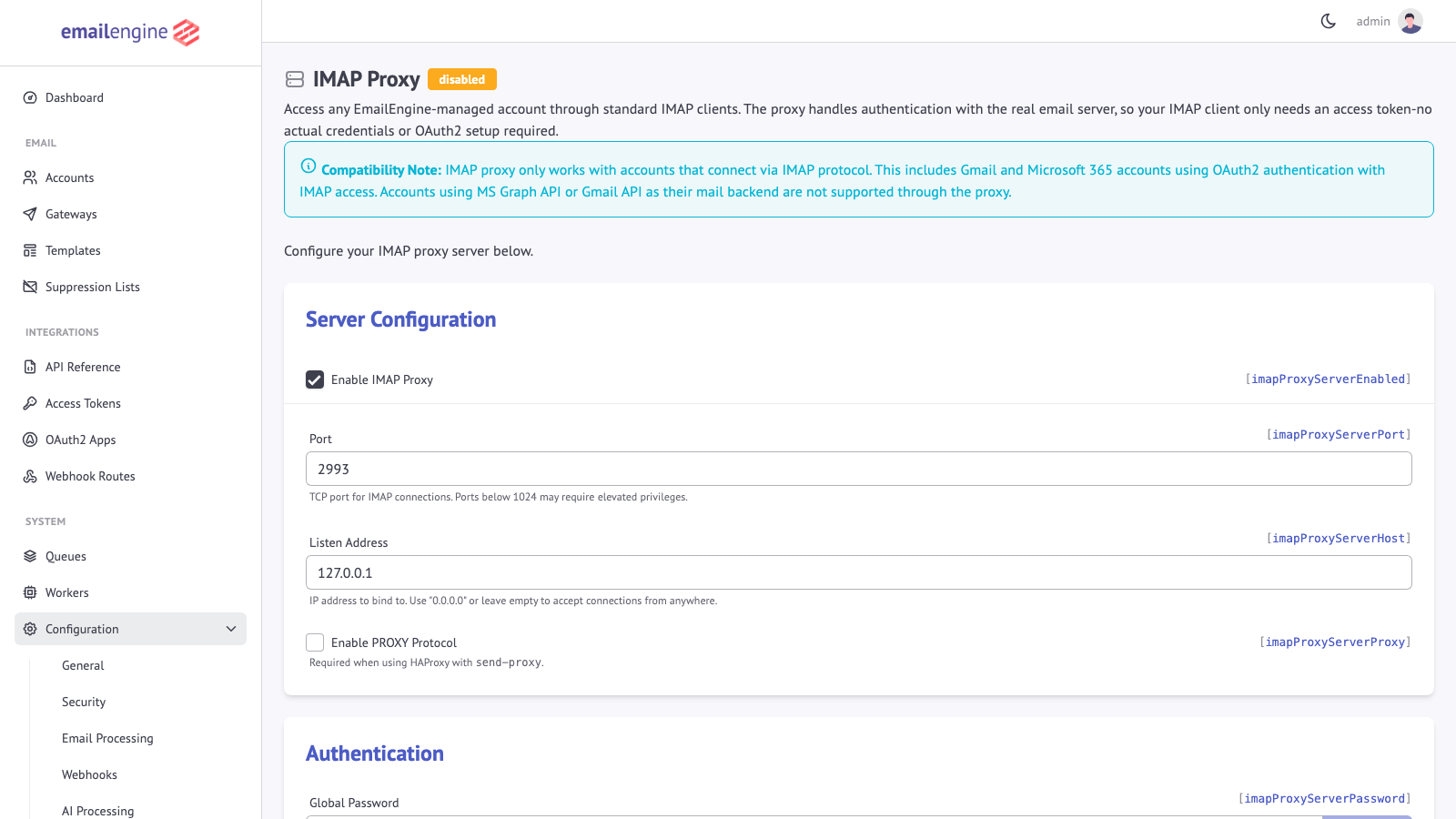

Navigate to Configuration → IMAP Proxy Interface in EmailEngine dashboard.

Configuration Options:

  • Host: 0.0.0.0 (to allow external connections) or 127.0.0.1 (localhost only)
  • Port: Choose a port (e.g., 2993 for TLS, 2143 for non-TLS)
  • TLS: Enable with your SSL certificate for secure connections

Example Configuration:

Host: 0.0.0.0
Port: 2993
TLS: Enabled
Certificate: /path/to/cert.pem
Key: /path/to/key.pem

After saving, EmailEngine will start the proxy server on the specified host and port.

Step 2: Verify Proxy is Running​

openssl s_client -crlf -connect localhost:2993

Expected Response:

...certificate details...
* OK EmailEngine IMAP Proxy ready for requests from 127.0.0.1

Without TLS (Development Only)​

nc -C localhost 2143

Or:

telnet localhost 2143

Expected Response:

* OK EmailEngine IMAP Proxy ready for requests from 127.0.0.1
Port Selection
  • 2993: Common choice for TLS-enabled IMAP proxy (993 + 2000)
  • 2143: Common choice for non-TLS proxy (143 + 2000)
  • Choose any available port that doesn't conflict with existing services

Step 3: Add OAuth2 Account to EmailEngine​

First, ensure you have an OAuth2 account configured in EmailEngine.

For Gmail: Follow Gmail OAuth2 setup guide →

For Outlook: Follow Outlook OAuth2 setup guide →

Must Use IMAP Backend

The account must be configured to use IMAP/SMTP, not Gmail API or MS Graph API. The proxy only works with IMAP-based accounts.

Step 4: Generate Access Token for Proxy​

Create an access token scoped specifically for IMAP proxy access using the Generate Token API endpoint:

curl -X POST https://your-ee.com/v1/token \
  -H "Authorization: Bearer YOUR_EMAILENGINE_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "scopes": ["imap-proxy"],
    "description": "IMAP proxy token for backup script",
    "restrictions": {
      "addresses": ["127.0.0.0/8"]
    }
  }'

Parameters:

  • account: EmailEngine account ID
  • scopes: Must include "imap-proxy" for proxy access
  • description: Required token description for identification
  • restrictions.addresses: Optional IP restrictions (CIDR notation)

Response:

{
  "token": "6cad01dae08f...458576a026c1ec"
}

Save this token - you'll use it as the IMAP password.

Token Scopes

If you also want to use the same token for SMTP proxy, include both scopes:

{
  "scopes": ["imap-proxy", "smtp"]
}

Step 5: Connect via IMAP Client​

Using Command-Line IMAP Client​

With TLS:

openssl s_client -crlf -connect localhost:2993

Authenticate:

A LOGIN user123 6cad01dae08f...458576a026c1ec
  • Username: EmailEngine account ID
  • Password: The generated access token

Response:

* CAPABILITY IMAP4rev1 LITERAL+ SASL-IR LOGIN-REFERRALS ID ENABLE IDLE SORT SORT=DISPLAY
A OK user123 authenticated

List folders:

B LIST "" "*"

Using Standard Email Client​

Configure your email client with these settings:

IMAP Settings:

  • Server: localhost (or EmailEngine server IP)
  • Port: 2993 (your configured proxy port)
  • Security: SSL/TLS (if you enabled TLS)
  • Username: EmailEngine account ID (e.g., user123)
  • Password: Generated access token

Example: Thunderbird

  1. Add new account
  2. Configure manually
  3. Use EmailEngine proxy settings
  4. Skip email discovery
  5. Use account ID as username, token as password

Using Python Script​

import imaplib

# Connect to EmailEngine IMAP proxy
mail = imaplib.IMAP4_SSL('localhost', 2993)

# Authenticate with account ID and token
mail.login('user123', '6cad01dae08f...458576a026c1ec')

# List mailboxes
status, mailboxes = mail.list()
print(mailboxes)

# Select inbox
mail.select('INBOX')

# Search for all messages
status, messages = mail.search(None, 'ALL')
print(f'Found {len(messages[0].split())} messages')

# Logout
mail.logout()

Using Generic IMAP Client​

// Pseudo code - use any IMAP library in your preferred language

connection = IMAP_CONNECT({
  user: "user123",
  password: "6cad01dae08f...458576a026c1ec",
  host: "localhost",
  port: 2993,
  tls: true,
  tlsOptions: {
    rejectUnauthorized: false  // Only for self-signed certs
  }
})

if CONNECTION_READY(connection) {
  mailbox = OPEN_MAILBOX(connection, "INBOX", readOnly: false)

  if mailbox {
    PRINT("INBOX has " + mailbox.messageCount + " messages")
    CLOSE_CONNECTION(connection)
  }
}

Access Token Management​

Creating Tokens​

Generate tokens for specific purposes:

Backup Script Token:

curl -X POST https://your-ee.com/v1/token \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "scopes": ["imap-proxy"],
    "description": "Daily backup script"
  }'

Admin Access Token (Multiple Scopes):

curl -X POST https://your-ee.com/v1/token \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "scopes": ["imap-proxy", "smtp", "api"],
    "description": "Admin full access"
  }'

Listing Tokens​

See all tokens for an account:

curl https://your-ee.com/v1/tokens/account/user123 \
  -H "Authorization: Bearer YOUR_TOKEN"

Response:

{
  "tokens": [
    {
      "id": "6cad01dae08f...458576a026c1ec",
      "description": "Daily backup script",
      "scopes": ["imap-proxy"],
      "created": "2024-01-15T10:00:00Z",
      "restrictions": {
        "addresses": ["10.0.0.0/8"]
      }
    }
  ]
}

Revoking Tokens​

Immediately invalidate a token:

curl -X DELETE https://your-ee.com/v1/token/6cad01dae08f...458576a026c1ec \
  -H "Authorization: Bearer YOUR_TOKEN"

Response:

{
  "deleted": true
}

After revocation:

  • Token can no longer authenticate
  • Active connections using that token remain open until they disconnect
  • Client will be unable to reconnect with that token

Token Rotation​

Best practice: Rotate tokens periodically:

# Generate new token
NEW_TOKEN=$(curl -X POST https://your-ee.com/v1/token \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "scopes": ["imap-proxy"],
    "description": "Backup script 2024-Q1"
  }' | jq -r '.token')

# Update your script with new token
echo "New token: $NEW_TOKEN"

# Test new token works
# ... deploy updated script ...

# Delete old token
curl -X DELETE https://your-ee.com/v1/token/OLD_TOKEN \
  -H "Authorization: Bearer YOUR_TOKEN"

IP Restrictions​

Restrict tokens to specific IP addresses or networks:

Single IP Address​

curl -X POST https://your-ee.com/v1/token \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "scopes": ["imap-proxy"],
    "restrictions": {
      "addresses": ["203.0.113.42"]
    }
  }'

IP Range (CIDR)​

curl -X POST https://your-ee.com/v1/token \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type": application/json" \
  -d '{
    "account": "user123",
    "scopes": ["imap-proxy"],
    "restrictions": {
      "addresses": ["10.0.0.0/8", "192.168.1.0/24"]
    }
  }'

Common CIDR Ranges:

  • 127.0.0.0/8 - Localhost only
  • 10.0.0.0/8 - Private network (10.x.x.x)
  • 172.16.0.0/12 - Private network (172.16-31.x.x)
  • 192.168.0.0/16 - Private network (192.168.x.x)

IP Restriction Errors​

If you try to connect from an unauthorized IP:

A LOGIN user123 6cad01dae08f...458576a026c1ec
A NO [AUTHENTICATIONFAILED] Access denied, traffic not accepted from this IP

Use Cases​

Legacy Application Integration​

Integrate email into applications that only support basic authentication:

# Cron job for email backup
#!/bin/bash

IMAP_HOST="emailengine.company.com"
IMAP_PORT="2993"
ACCOUNT="backup"
TOKEN="6cad01dae08...026c1ec"

# Use offlineimap or similar
offlineimap -c ~/.offlineimaprc-via-proxy

~/.offlineimaprc-via-proxy:

[general]
accounts = EmailEngineProxy

[Account EmailEngineProxy]
localrepository = Local
remoterepository = Remote

[Repository Local]
type = Maildir
localfolders = ~/mail-backup

[Repository Remote]
type = IMAP
remotehost = emailengine.company.com
remoteport = 2993
ssl = yes
remoteuser = backup
remotepass = 6cad01dae08...026c1ec

Email Client Access​

Use standard email clients with OAuth2 accounts:

  • Thunderbird: Configure as IMAP account
  • Apple Mail: Add as IMAP account
  • Outlook: Add as IMAP account
  • Mobile clients: Configure IMAP settings

Benefits:

  • Users don't need to know about OAuth2
  • Centralized credential management
  • Easy to revoke access

Development and Testing​

Test email integration without complex OAuth2 setup:

// Pseudo code - simple IMAP test script

connection = IMAP_CONNECT({
  user: "test-account",
  password: "test-token-12345",
  host: "localhost",
  port: 2993,
  tls: false  // Development only - use TLS in production!
})

// Test IMAP functionality
if CONNECTION_READY(connection) {
  PRINT("Connected successfully!")
}

Monitoring and Alerting​

Monitor email accounts for specific messages:

import imaplib
import time

def check_for_alerts():
    mail = imaplib.IMAP4_SSL('emailengine.company.com', 2993)
    mail.login('monitoring', 'monitoring-token')
    mail.select('INBOX')

    # Search for unread messages with specific subject
    status, messages = mail.search(None, 'UNSEEN', 'SUBJECT', '"Alert"')

    for msg_id in messages[0].split():
        # Process alert
        print(f'Alert found: {msg_id}')

    mail.logout()

# Run every minute
while True:
    check_for_alerts()
    time.sleep(60)

Combining with SMTP Proxy​

EmailEngine also provides an SMTP proxy. With both enabled, email clients get full functionality:

Enable SMTP Proxy​

In EmailEngine: Configuration → SMTP Proxy Interface

Settings:

  • Host: 0.0.0.0
  • Port: 2587 (or your choice)
  • TLS: Enabled (recommended)

Generate Token with Both Scopes​

curl -X POST https://your-ee.com/v1/token \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "scopes": ["imap-proxy", "smtp"],
    "description": "Full email access"
  }'

Configure Email Client​

Incoming (IMAP):

  • Server: emailengine.company.com
  • Port: 2993
  • Security: SSL/TLS
  • Username: user123
  • Password: 6cad01dae08...

Outgoing (SMTP):

  • Server: emailengine.company.com
  • Port: 2587
  • Security: STARTTLS
  • Username: user123
  • Password: 6cad01dae08... (same token)

Now the email client can both send and receive through EmailEngine's proxies.

Performance Considerations​

Connection Pooling​

EmailEngine maintains persistent connections:

  • Reduces connection overhead
  • Faster operation execution
  • Efficient resource usage

Concurrent Connections​

Monitor simultaneous connections:

  • Each proxy connection uses one upstream IMAP connection
  • Provider connection limits still apply (typically 10-15)
  • Don't exceed provider limits

Large-Scale Deployments​

For many concurrent users:

Load Balancing:

  • Deploy multiple EmailEngine instances
  • Use load balancer for proxy connections
  • Distribute accounts across instances

Monitoring:

  • Track connection count
  • Monitor resource usage
  • Alert on capacity issues
