Setting Up Gmail with OAuth2 (IMAP/SMTP)

This guide shows you how to set up a Gmail OAuth2 application for IMAP and SMTP access with EmailEngine. EmailEngine will use these credentials to access Gmail accounts and allow REST queries against these accounts.

tip

This post covers setting up Gmail OAuth2 for IMAP and SMTP. If you would like to use Gmail API instead, see the Gmail API setup guide.

Screenshots may be outdated

There are many screenshots in this guide. While the general process has remained stable for years, Google may update their interface, so some screenshots might not exactly match what you see.

Overview

When you enable OAuth2 for Gmail with IMAP/SMTP:

• EmailEngine uses IMAP for reading emails and SMTP for sending
• Gmail API is enabled but only used to generate OAuth2 access tokens for IMAP/SMTP authentication
• Users authenticate once via OAuth2, and EmailEngine automatically refreshes tokens
• No passwords are stored, and 2FA accounts work seamlessly

IMAP vs Gmail API: OAuth2 Scope Requirements

Both IMAP and Gmail API provide the same functionality (both can access labels, messages, etc.). The key difference is in OAuth2 scope requirements:

IMAP/SMTP Requirements:

• Requires the widest scope: https://mail.google.com/
• Full access to all Gmail operations
• Simpler to set up (one scope for everything)

Gmail API Requirements:

• Can use more granular scopes based on your use case
• Google prefers applications to request only the scopes they need
• Example scopes:
  • gmail.readonly - Read-only access to messages
  • gmail.modify - Read, send, and modify emails (can move to trash but not permanently delete)
  • gmail.send - Send emails only

The mail.google.com Scope is Restricted

The https://mail.google.com/ scope is classified as restricted by Google. This affects when you can use it:

App Type	mail.google.com Scope	Notes
Internal apps (Workspace)	Allowed	No restrictions for your organization's users
Development/Testing	Allowed	Up to 100 test users, tokens expire after 7 days
Public production apps	Usually rejected	Google requires justification for full access

For public production apps, Google enforces a principle of least privilege. During verification, they will ask why you need full access. Unless your use case explicitly requires permanent email deletion (not just moving to trash), Google will likely reject the mail.google.com scope and ask you to use gmail.modify instead.

If Google rejects your scope request, you must use the Gmail API backend instead of IMAP/SMTP, as the limited scopes don't work with IMAP.

Decision:

• Use IMAP OAuth2 if: You have an internal app, are in development, or can justify the https://mail.google.com/ scope to Google
• Use Gmail API if: Google requires you to use more limited scopes during the verification process

See the Gmail API setup guide for native API integration.

Authentication Options for Gmail

Before we dive into OAuth2 setup, it's worth understanding all Gmail authentication options:

Account Password

No Longer Available

Gmail has completely disabled account password authentication for all accounts. This authentication method can no longer be used. You must use app passwords or OAuth2 instead.

App Passwords

App passwords provide IMAP/SMTP access without OAuth2:

1. App passwords are only available with 2FA enabled
2. Generate an application-specific password
3. Use this password instead of your main password

When to use:

• Quick access for testing and development
• Fallback when Google rejects your OAuth2 application - If Google denies access to Gmail API scopes entirely (e.g., your use case is not supported), app passwords allow users to still connect their accounts to EmailEngine
• Internal tools where OAuth2 setup is not justified

Downsides:

• If main password changes, all app passwords are invalidated
• Users must manually generate and provide passwords
• Less convenient user experience than OAuth2
• Not ideal for SaaS applications with many users

OAuth2 (This Guide)

OAuth2 provides the best experience for production applications:

Benefits:

• No password storage
• Works with 2FA accounts
• Automatic token refresh
• Better security
• Seamless user experience

Types of OAuth2 Apps:

1. Internal Apps - For Google Workspace organizations only

   • No security audit required
   • Only works for accounts in your organization
   • Best for enterprise deployments

2. Public Development Apps

   • Up to 100 manually whitelisted accounts
   • OAuth2 grants expire after 7 days
   • Not suitable for production

3. Public Production Apps

   • Works with any Gmail account
   • Requires thorough security audit (expensive and time-consuming)
   • Strict scope requirements
   • Google may reject email-access use cases

Recommendation: Use Internal apps for organizations, app passwords for testing, and OAuth2 for production if you can pass Google's audit.

Step 1: Create a Google Cloud Project

Go to Google Cloud Console and open the project menu in the top navbar.

Click the "New project" button to start.

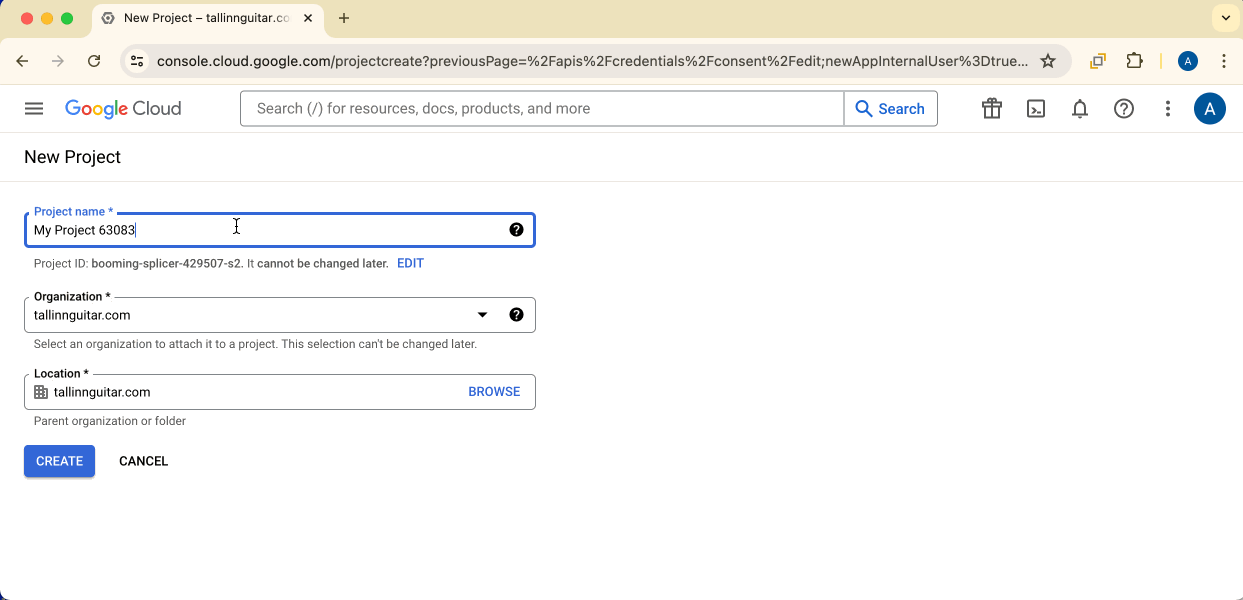

On the project settings screen, name your project (e.g., "EmailEngine"). All other fields are pre-filled and cannot be changed.

Wait for the project to be created, then select it from the project menu.

Step 2: Enable Required APIs

Your new project is empty and needs API access configured.

Click the hamburger menu (top-left) → APIs & Services → Enabled APIs & Services.

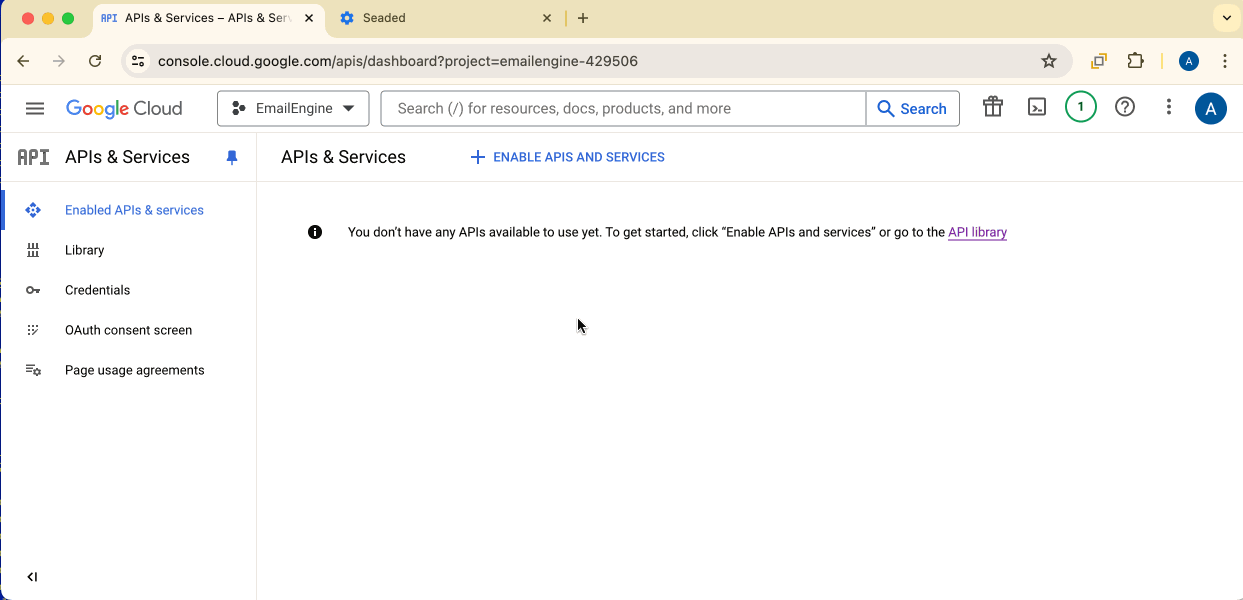

Find and enable Gmail API for your project.

Why Enable Gmail API for IMAP?

Enabling Gmail API means your project can access Gmail email accounts regardless of protocol. EmailEngine uses IMAP and SMTP for actual email operations, and Gmail API is only used to generate OAuth2 access tokens for authenticating those IMAP/SMTP sessions.

If you want to use Gmail REST API instead of IMAP/SMTP, see the Gmail API setup guide.

IMAP vs Gmail API

• IMAP/SMTP (this guide): Standard email protocols, easier setup, works like any other email account
• Gmail API (alternate): Faster, Gmail-specific features (labels, drafts), requires Cloud Pub/Sub setup

For most use cases, IMAP/SMTP with OAuth2 is sufficient. Use Gmail API only if you need maximum performance or Gmail-specific features.

Step 3: Configure OAuth Consent Screen

The consent screen is shown to users when they authorize EmailEngine to access their Gmail account.

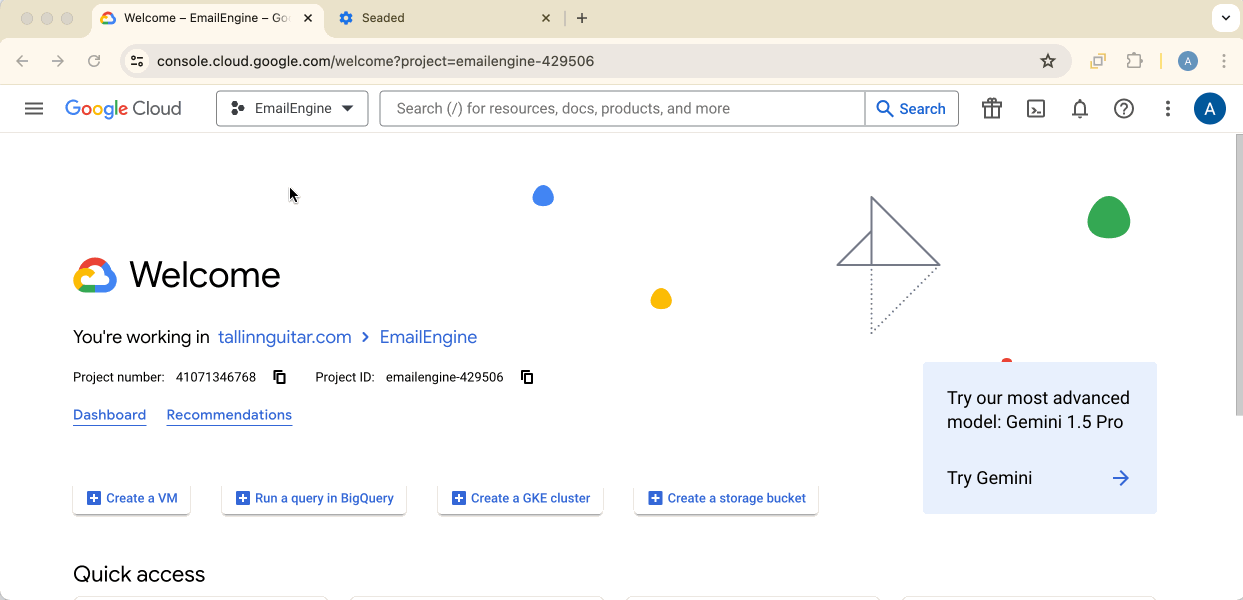

Click hamburger menu → APIs & Services → OAuth consent screen.

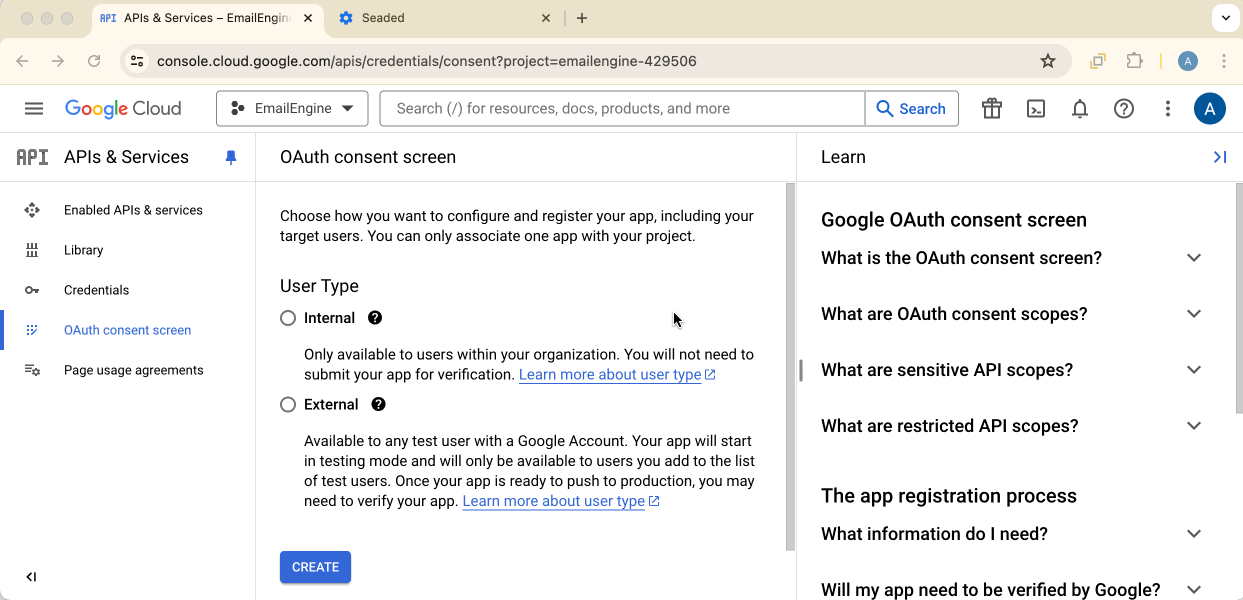

Choose User Type

Internal:

• Only accounts from your Google Workspace organization
• No verification process required
• Cannot add @gmail.com accounts or other organizations
• Best for testing and enterprise apps

External:

• Any Gmail user can authenticate
• Requires verification for production
• Best for public applications
• More complex approval process

For this tutorial, we'll use Internal. For production public apps, select External and follow Google's verification process.

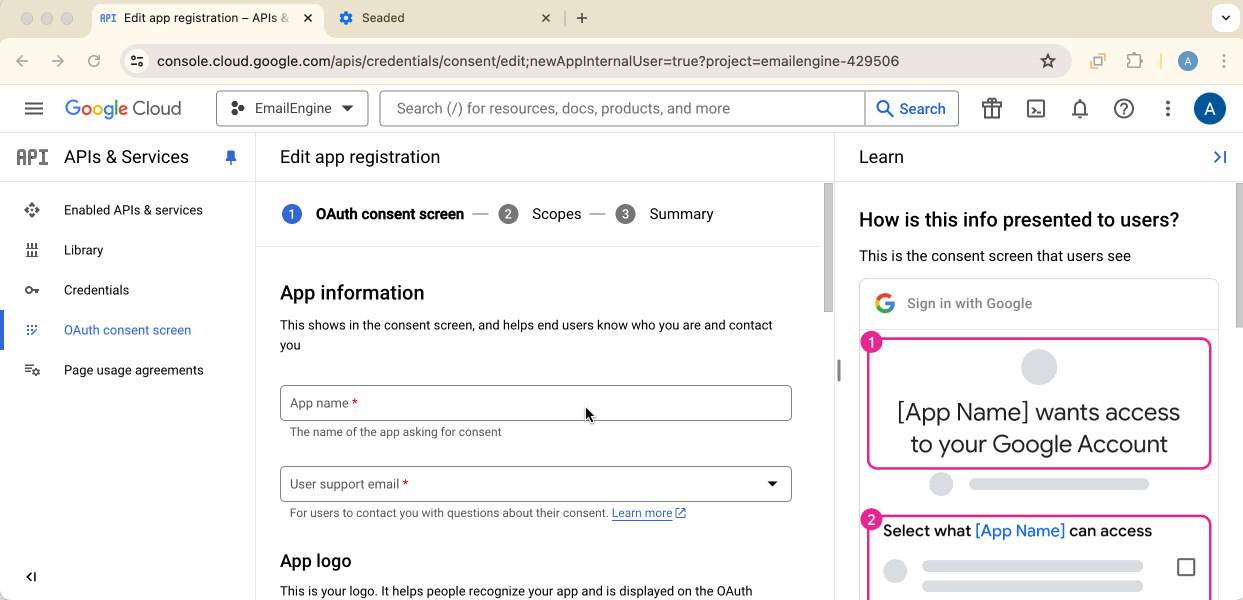

Fill in App Information

Provide:

• App name: "EmailEngine" (or your application name)
• User support email: Your email address
• Developer contact information: Your email address
• Application home page: Your EmailEngine instance URL (e.g., http://127.0.0.1:3000)

Click Save and continue.

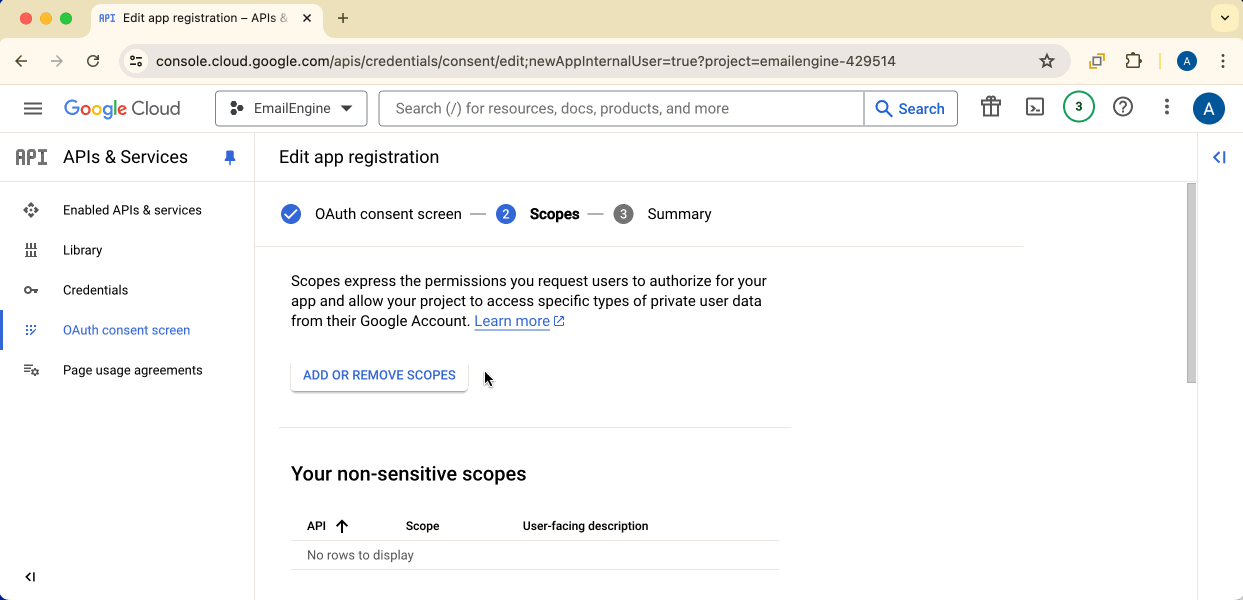

Configure Scopes

Click Add or remove scopes and find https://mail.google.com/ from the list.

Required Scope for IMAP/SMTP

The https://mail.google.com/ scope is required for IMAP and SMTP access.

If you were using Gmail REST API instead, the scope would be https://www.googleapis.com/auth/gmail.modify.

Check the scope and click Update to apply changes.

Scroll down and click Save and continue to finish consent screen setup.

Step 4: Create OAuth Credentials

Navigate to APIs & Services → Credentials, then click Create Credentials → OAuth client ID.

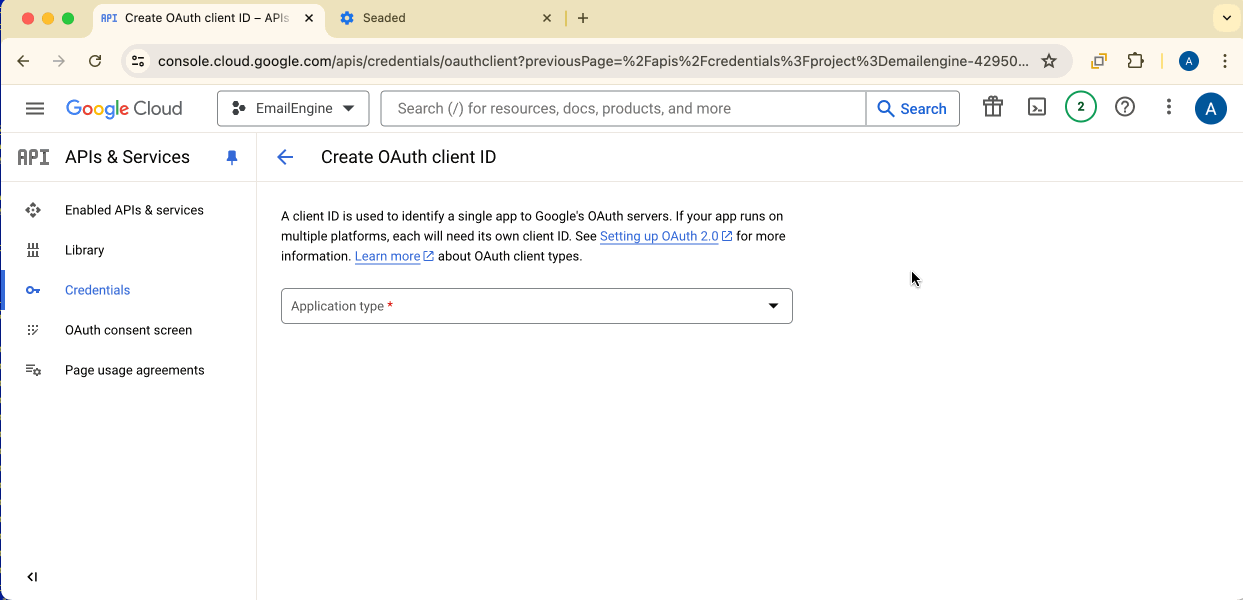

Configure OAuth Client

Application type: Web application

Authorized JavaScript origins: Add your EmailEngine URL without any path:

• http://127.0.0.1:3000 (for local testing)
• https://your-emailengine-domain.com (for production)

Authorized redirect URIs: Add your EmailEngine URL with the /oauth path:

• http://127.0.0.1:3000/oauth (for local testing)
• https://your-emailengine-domain.com/oauth (for production)

You can add multiple redirect URIs if you want to use the same OAuth2 app with multiple EmailEngine instances (e.g., development, staging, and production environments).

Redirect URL Must Match Exactly

The redirect URL configured in EmailEngine must exactly match one of the URLs listed here. Mismatches will cause OAuth flow failures.

Click Create.

Download Credentials

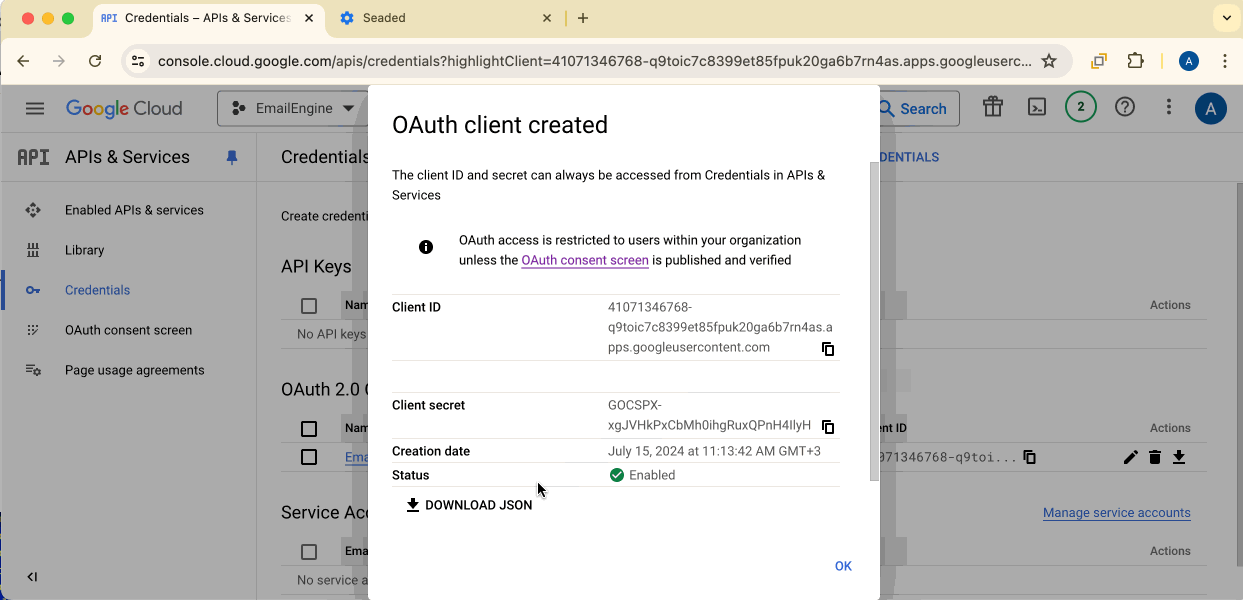

Click the Download button to save the credentials JSON file. You'll need this file to configure EmailEngine.

Step 5: Configure EmailEngine

Now that you have your Google Cloud project configured, let's set up EmailEngine to use these credentials.

Add OAuth2 Application in EmailEngine

1. Open your EmailEngine dashboard
2. Navigate to Configuration → OAuth2
3. Click Add application and select Gmail

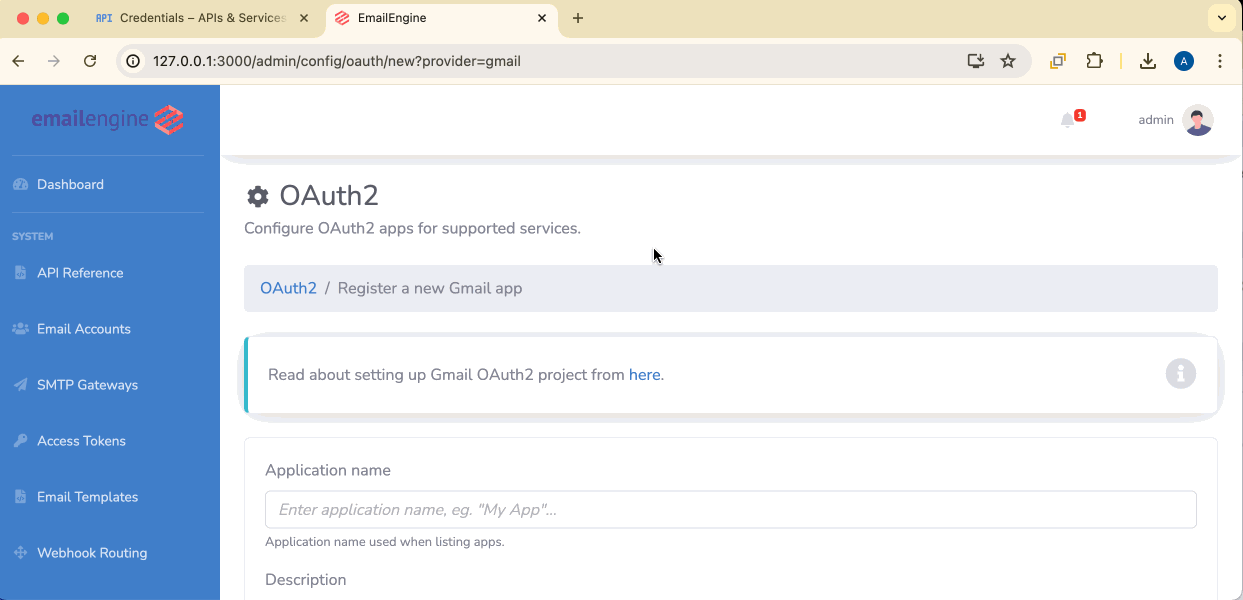

Configure OAuth2 Settings

Application name: Give it a descriptive name (e.g., "Gmail OAuth2")

Enable this app: Check this box (otherwise it won't appear in authentication forms)

Credentials file: Select the JSON file you downloaded from Google Cloud Console. This will auto-fill:

• Client ID
• Client Secret
• Other OAuth2 parameters

Redirect URL: Verify this matches exactly what you entered in Google Cloud Console

• Example: http://127.0.0.1:3000/oauth

Base scope: Select IMAP and SMTP

Click Register app to save.

Base Scope Selection

• IMAP and SMTP: EmailEngine uses IMAP for reading and SMTP for sending (this guide)
• Gmail API: EmailEngine uses Gmail REST API for all operations (requires Cloud Pub/Sub)

Choose IMAP and SMTP unless you specifically need Gmail API features.

Step 6: Test the Setup

Now you can add a Gmail account to test the OAuth2 flow.

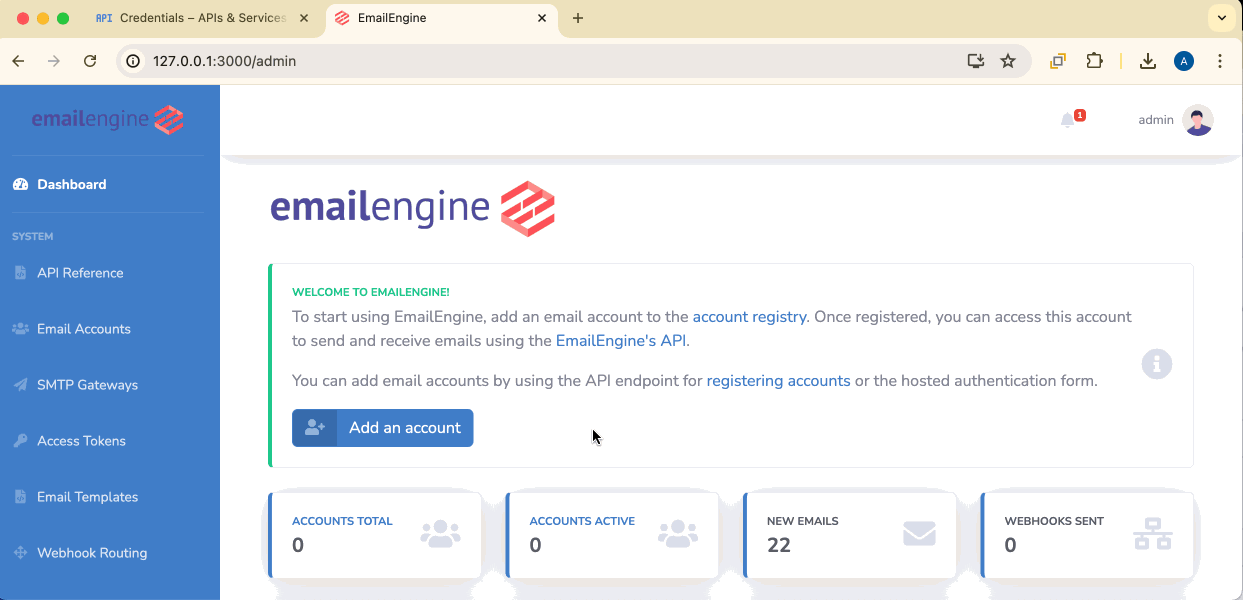

Option 1: Via Hosted Authentication Form

1. In EmailEngine, click Add account
2. Click Sign in with Google
3. Complete the OAuth2 consent flow
4. You'll be redirected back to EmailEngine

Option 2: Via API

Generate an authentication form URL:

curl -X POST https://your-ee.com/v1/authentication/form \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "email": "user@gmail.com",
    "type": "gmail_oauth_app_id",
    "redirectUrl": "https://myapp.com/settings"
  }'

Field	Description
account	Unique account identifier in EmailEngine
email	Pre-fill email field (optional)
type	OAuth2 application ID from EmailEngine (optional) - skips account type selection
redirectUrl	Where to redirect after authentication

The type parameter is the Provider ID of your OAuth2 application in EmailEngine (visible in the OAuth2 settings page), not the Google client ID. When specified, users are sent directly to the Google authorization page without seeing the account type selection screen.

Response:

{
  "url": "https://your-ee.com/accounts/new?data=eyJhY2NvdW50..."
}

Direct the user to this URL to complete authentication.

Learn more about hosted authentication →

Option 3: Direct API Account Registration

If you already have OAuth2 tokens from elsewhere:

curl -X POST https://your-ee.com/v1/account \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "name": "John Doe",
    "email": "user@gmail.com",
    "oauth2": {
      "provider": "AAABlf_0iLgAAAAQ",
      "accessToken": "ya29.a0AWY7Ckl...",
      "refreshToken": "1//0gDj5..."
    }
  }'

Provider ID

The provider field should be the OAuth2 application ID from EmailEngine, which is a base64url encoded string like AAABlf_0iLgAAAAQ. You can find this ID in Configuration → OAuth2 Apps in the EmailEngine interface. This is NOT the Client ID from Google Cloud Console.

See full API documentation →

Gmail-Specific Considerations

Label vs Folder Mapping

Gmail uses labels, but IMAP presents them as folders:

• Multiple labels = message appears in multiple folders
• Moving messages between folders in IMAP = changing labels in Gmail
• Some Gmail labels map to special IMAP folders (e.g., [Gmail]/All Mail)

All Mail Folder

The [Gmail]/All Mail folder is a virtual folder that contains all messages regardless of labels, except messages in Trash and Spam folders.

Gmail Throttling

Gmail may throttle accounts with unusual activity:

• Sudden large volume of operations
• Many failed authentication attempts
• Rapid folder syncing

Prevention:

• Implement gradual rollout for new accounts
• Use exponential backoff on errors
• Monitor account states for throttling indicators

Production Considerations

Security Audit for Public Apps

If you need a public OAuth2 app accessible to any Gmail user:

Requirements:

1. Security audit: OWASP compliance, penetration testing
2. Use case validation: Not all app types qualify (e.g., email exporters may be blocked)
3. Minimum permission set: Google may reject https://mail.google.com/ as too broad

Process:

• Audit costs significant money and time
• Must demonstrate why IMAP access is necessary
• Google may require you to use narrower scopes (which may not work with EmailEngine)

Alternatives if audit is not feasible:

• Use Internal apps (Google Workspace only)
• Use app passwords
• Consider if your use case can work with narrower scopes

Managing Multiple OAuth2 Apps

You can configure multiple Gmail OAuth2 applications in EmailEngine:

• Different apps for different user segments
• Separate testing and production apps
• Organization-specific apps

Each app gets its own settings and can use different scopes or configurations.

Token Management

EmailEngine automatically:

• Refreshes access tokens when they expire during API requests
• Makes regular API requests (at least daily) even for idle accounts, keeping refresh tokens active
• Stores refresh tokens securely in Redis
• Re-authenticates on token refresh failures

You can:

• Retrieve current access tokens via API for use with other Google APIs
• Revoke access by deleting the account
• Monitor token status via account state

Refresh Token Expiration

Google refresh tokens can expire under certain conditions:

• 6 months of inactivity - If not used to obtain new access tokens
• 7 days - If your OAuth app is in "Testing" mode (not published to production)
• User revokes access - Via Google account settings
• Password change - When Gmail scopes are present
• Token limit exceeded - Google allows ~50 refresh tokens per user/client; oldest tokens are invalidated

EmailEngine keeps tokens active by making regular API requests, but if an account is deleted from EmailEngine and re-added later, a new consent flow is required.

Learn more about OAuth2 token management →
