Access Tokens

Access tokens are required to authenticate all API requests to EmailEngine. This guide covers token types, creation methods, security best practices, and management strategies.

Overview

What are Access Tokens

Access tokens are 64-character hexadecimal strings that authenticate API requests. EmailEngine supports two types of tokens:

1. System-wide tokens: Full access to all EmailEngine endpoints and all accounts
2. Account-specific tokens: Restricted to operations on a single account

Either kind can additionally carry a permissions record that narrows what it may do. A system-wide token minted over the API must carry one.

Token Format

All tokens are 64-character hexadecimal strings (32 bytes):

f05d76644ea39c4a2ee33e7bffe55808b716a34b51d67b388c7d60498b0f89bc

Token ID

EmailEngine stores only the SHA-256 hash of each token, never the token value itself. This hash is the token's stable identifier:

• Returned as the id field by GET /v1/tokens (add ?account={account} to list one account's tokens)
• Shown in the admin UI access tokens list as the "Token ID" column (first 8 hex characters, full hash on hover)
• Included in log entries, so API requests can be correlated to the token that made them

The token value cannot be recovered from the id. DELETE /v1/tokens/{token} accepts either the original token value or the token id.

Token Types

System-Wide Tokens

Created via:

• Web interface (Integrations > Access Tokens)
• CLI: emailengine tokens issue
• API: POST /v1/tokens without an account, which then requires a permissions record

Characteristics:

• Access all accounts
• Access all API endpoints, unless narrowed by permissions
• Can create other tokens, unless narrowed by permissions
• Can optionally be scoped to specific account using -a flag in CLI
• Recommended for administrative tasks

Example use cases:

• Account management (create, update, delete accounts)
• System configuration
• Multi-account operations
• Administrative automation

Account-Specific Tokens

Created via:

• API: POST /v1/tokens (with an account field)

Characteristics:

• Bound to single account
• Can only access that account's data
• Cannot create other tokens
• Cannot access system-wide endpoints: any route that has no {account} in its path is refused with 403 Unauthorized account
• Recommended for user-facing applications

Example use cases:

• Per-user API access in multi-tenant applications
• Limited scope for third-party integrations
• Security-sensitive deployments

Important: A token minted over the API must be narrowed: either bind it to an account, or send a permissions record. The API declines to mint an instance-wide token that can reach every account and every endpoint - create those in the web interface or with the CLI.

Creating Tokens

Method 1: Web Interface

Best for: Manual token creation, administrative tokens

1. Log in to EmailEngine web interface
2. Navigate to Integrations > Access Tokens
3. Click Create access token
4. Enter a description, optionally bind the token to an account, select scopes, and narrow it with Restrict what this token can do if needed
5. Click Generate a token
6. Copy the token (shown only once)

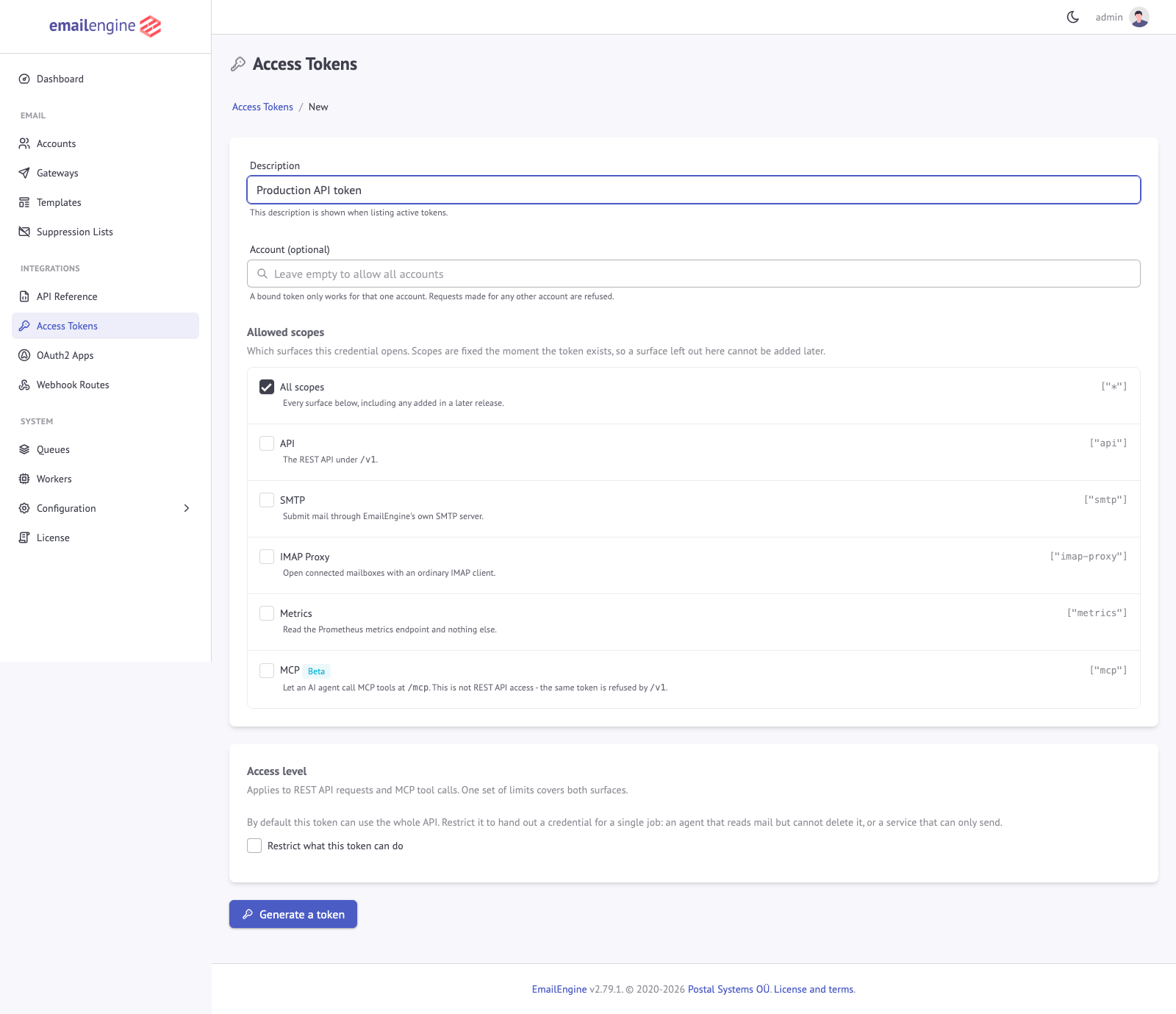

The token form takes a description, an optional account binding and the allowed scopes, and can narrow what the token may do. The generated token value is shown only once

Pros:

• Simple and intuitive
• Visual scope selection
• Immediate feedback

Cons:

• Requires manual interaction
• Not suitable for automation

Method 2: CLI

Best for: Automation, CI/CD, Docker deployments, infrastructure-as-code

The EmailEngine CLI provides commands to generate, export, import, and manage tokens programmatically. This is particularly useful for automated deployments and prepared token configuration.

CLI Documentation

For complete CLI usage, installation, and configuration options, see the Command Line Interface (CLI) documentation.

Generate system-wide token:

emailengine tokens issue \
  -d "My admin token" \
  -s "*" \
  --dbs.redis="redis://127.0.0.1:6379/8"

Generate account-specific token:

emailengine tokens issue \
  -d "User token" \
  -s "api" \
  -a "user123" \
  --dbs.redis="redis://127.0.0.1:6379/8"

Output:

f05d76644ea39c4a2ee33e7bffe55808b716a34b51d67b388c7d60498b0f89bc

Without -s the CLI issues a * token, and without -d the description is Generated at <timestamp>.

For detailed CLI usage, export/import workflows, and prepared token configuration for automated deployments, see Prepared Tokens.

Method 3: API

Best for: Programmatic token creation, multi-tenant applications

Endpoint: POST /v1/tokens

Detailed API reference →

Authentication: Requires an instance-wide token with the * or api scope and no permissions record. Token provisioning is in the never-grantable admin group, so an account-bound token is refused (the route has no {account} parameter) and a narrowed token is refused whatever it lists. A request made while API authentication is switched off is refused too, since nothing could ever revoke a token handed to an anonymous caller.

curl -X POST https://emailengine.example.com/v1/tokens \
  -H "Authorization: Bearer EXISTING_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "description": "User API token",
    "scopes": ["api"]
  }'

Fields:

• description (string, required): Token description
• scopes (array): Token scopes, default ["api"]
• account (string): Account ID this token is bound to
• permissions (object): actions and groups allowlists, see Permissions
• restrictions (object): IP, referrer and rate limits, see Token Restrictions
• metadata (string): Arbitrary JSON, stored with the token and returned by GET /v1/tokens/{token}
• expires (date-time): When the token stops working. Omit for a token that never expires. An expired token is refused and its record is removed the next time it is presented or listed

Either account or permissions has to be present.

Response:

{
  "token": "f05d76644ea39c4a2ee33e7bffe55808b716a34b51d67b388c7d60498b0f89bc",
  "id": "1bc12baf7f0d5e51fe0a4e0eda06e1be5b8d6cc2c66b95dc0fbe4d2e9f5d5e1a"
}

Important notes:

• The token value is returned once and stored hashed. The id is what the listings report afterwards
• An unbound token must carry a permissions record; without one the request is refused
• You need an existing full-access token to mint tokens

Deprecated paths

EmailEngine 2.79.0 renamed the token endpoints. POST /v1/token, DELETE /v1/token/{token} and GET /v1/tokens/account/{account} still answer, with the same handlers as POST /v1/tokens, DELETE /v1/tokens/{token} and GET /v1/tokens?account=user123, so existing integrations keep working, but they are left out of the OpenAPI document and the API reference. Use the new paths.

Token Scopes

Scopes define what a token can access:

Scope	Description	Access	Available via
*	Full access	All API endpoints, all operations	Web UI, CLI only
api	API access only	Standard API calls, no metrics	Web UI, CLI, API
metrics	Metrics only	Prometheus metrics endpoint only	Web UI, CLI only
smtp	SMTP proxy	SMTP gateway access	Web UI, CLI, API
imap-proxy	IMAP proxy	IMAP proxy access	Web UI, CLI, API
mcp	MCP endpoint	AI agent tool calls at /mcp, and nothing on the REST API	Web UI, CLI, API

API Scope Limitations

When creating tokens via the POST /v1/tokens API endpoint, only api, smtp, imap-proxy, and mcp scopes are available. The * (full access) and metrics scopes can only be assigned through the Web UI or CLI.

The mcp scope is surface-bound

A token carrying mcp opens the MCP endpoint and is refused by /v1 with an "Unauthorized scope" error. Inside MCP it admits only the operations the tool set wraps: reading accounts, folders, messages, the sending queue and templates, modifying and deleting messages, and sending mail. See MCP Access Control.

Multiple scopes:

{
  "scopes": ["api", "smtp"]
}

Default scope: ["api"] over the API, ["*"] from the CLI.

The smtp, imap-proxy and metrics scopes are checked once, at login, and then hand over a session. A token that also carries a permissions record is admitted to them only if the record covers everything that session could do: send on submit for SMTP, read on diagnostics for metrics, and for the IMAP proxy read, write and destructive on message plus write and destructive on mailbox, because a proxied IMAP session can delete and expunge. The token form warns when a chosen scope would be unusable with the record.

Permissions

A permissions record narrows a token below its scope. It has two axes, each an allowlist, and both apply together: an operation is allowed only when its action is in actions and its group is in groups. Omit an axis to leave it unrestricted. An empty array is refused, because a record that lists nothing allows nothing.

{
  "description": "Read-only mail access",
  "scopes": ["api"],
  "permissions": {
    "actions": ["read"],
    "groups": ["account", "mailbox", "message"]
  }
}

Actions, one per operation:

Action	Allows
read	Read data without changing anything
write	Create or modify data
send	Hand a message to a mail server, so it reaches real recipients
destructive	Call the endpoints that remove data. Deleting a message is a move to Trash, which a write grant can perform directly, so withholding this narrows the endpoints rather than the outcome for mail

Groups, one per operation:

Group	Covers
account	Reading accounts and operating on their connection state: list, get, delete, reconnect, sync, flush, server signatures
mailbox	Create, rename, delete and list mailbox folders
message	Read, modify, move and delete messages, including bulk actions and search
submit	Send email, including scheduled sends and the delivery test. A send may reference a stored message to forward it, so this also reads the message it names
outbox	Inspect and cancel queued outbound messages
export	Bulk export an account. One call archives every folder, so this is separate from message access
template	Manage stored email templates
blocklist	Manage suppression lists
webhook	Read webhook route definitions
gateway	Read and delete SMTP gateways. Creating or editing one is an admin operation, because it can redirect where stored relay credentials are sent
events	Subscribe to the instance-wide change stream, which covers every account
diagnostics	Read statistics and service status, including /metrics
logs	Read the per-account connection log. Entries are the raw protocol trace, so they include folder names and message subjects

Every operation in the API reference publishes the action and group it requires as x-ee-action and x-ee-group, so the reference and the enforcement cannot disagree.

Some operations belong to an admin group that no record may name. A token with any permissions record, whatever it lists, can never read or change settings, manage OAuth2 applications or the license, read a stored credential or an account's live OAuth2 access token, create or edit an account or a gateway, mint a hosted authentication form, verify credentials, or create, list, inspect or revoke tokens. That is what keeps a narrowed token from widening itself.

A request refused by the record answers 403 Forbidden with the message Unauthorized permission. The audit log records which axis refused it.

The admin token form offers presets (read only, mail agent, send only, everything allowed) that fill in these records, and the MCP access levels are the same records with the groups the MCP surface exposes.

Token Management

Export and Import Tokens

You can export tokens for backup or to transfer them between EmailEngine instances. Exported tokens can also be used as prepared tokens for automated deployments.

Important: Exported tokens are data structures containing the token hash, NOT the actual token value. The exported data CANNOT be used directly as an API token. Only the original token value generated during creation can be used for API authentication.

# Export a token (exports token metadata and hash)
emailengine tokens export -t TOKEN_VALUE

# Import a previously exported token
emailengine tokens import -t EXPORTED_DATA

For complete export/import workflows and prepared token configuration, see Prepared Tokens.

Revoking Tokens

Via web interface:

1. Navigate to Integrations > Access Tokens
2. Find the token to revoke
3. Click Delete
4. Confirm deletion

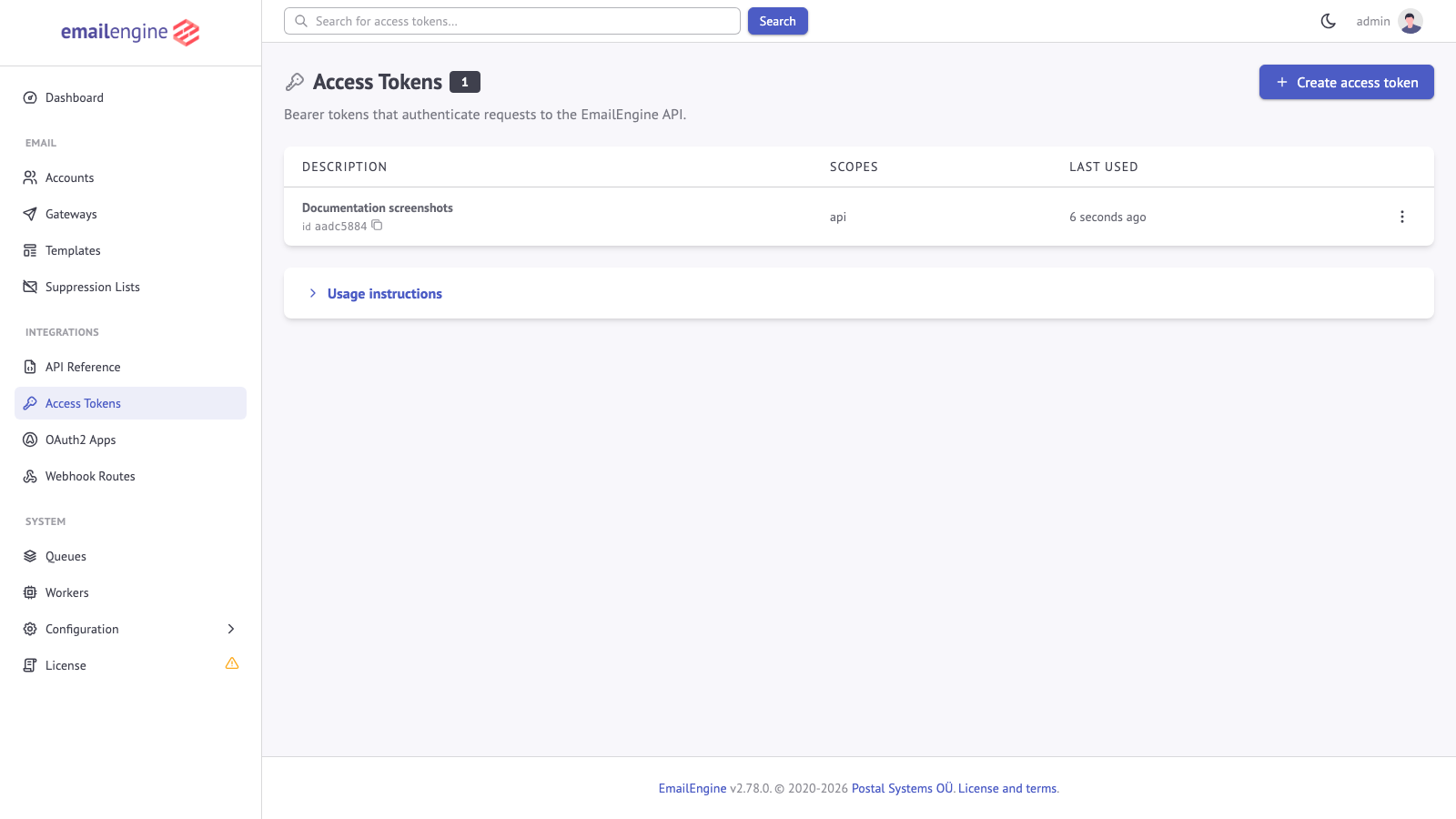

The Access Tokens page lists active tokens with their descriptions and scopes

Via API:

curl -X DELETE https://emailengine.example.com/v1/tokens/TOKEN_VALUE_OR_ID \
  -H "Authorization: Bearer ADMIN_TOKEN"

The path parameter accepts either the original token value or the token id (the SHA-256 hash shown by the token listing endpoints), so tokens can be revoked even if the original value is no longer available.

Detailed API reference →

CLI Token Deletion

The CLI does not have a tokens delete command. To delete tokens programmatically, use the API endpoint above or the web interface.

Audit Log

EmailEngine can record what each token actually did. It is off by default: turn it on under Configuration > Security > Access Token Audit Log, after which every request a token makes is recorded, refusals included.

curl "https://emailengine.example.com/v1/tokens/TOKEN_VALUE_OR_ID/log" \
  -H "Authorization: Bearer ADMIN_TOKEN"

Each entry names the moment, the client address, the request, and what happened to it:

Field	Meaning
time	When the request arrived
ip	The client address, resolved through the proxy configuration if there is one
method, path	The API operation, as the route pattern: get and /v1/account/{account}/messages. For SMTP and the IMAP proxy, method is the surface name instead
action, group	The permission the operation resolved to
account	The account the request named, when it named one
status	allowed or denied
reason	Why a denied request was refused: scope, account, address, referrer or rateLimit for a token-level refusal, action, group or restricted when the permissions record refused it, malformed or unclassified when the record or the route could not be read, and username or ip when the SMTP server or the IMAP proxy refused the login. null when allowed

Retention is bounded per token by EENGINE_TOKEN_LOG_ENTRIES, 1000 by default, and EENGINE_TOKEN_LOG_AGE, seven days by default, whichever is reached first. The log lives in Redis, so both limits cost memory across every token that has one.

A denied entry is the useful half: it shows an integration reaching for something its token was never granted, which is what a narrowed token is supposed to surface.

Disabling Authentication (Development Only)

Development only

Disabling authentication removes all API access control. Use it on a local instance with test accounts, and re-enable it before the instance is reachable by anyone else.

You can disable the access token requirement for development purposes:

1. Log in to EmailEngine web interface
2. Navigate to Configuration > Security
3. Uncheck Require API Authentication
4. Click Save Changes

When disabled:

• API calls work without Authorization header
• No token validation is performed
• All endpoints are accessible without authentication, except POST /v1/tokens, which refuses to mint a token for an unauthenticated caller
• No access control or user tracking

Example:

# With authentication disabled
curl https://emailengine.example.com/v1/accounts
# Works without Bearer token

Use cases:

• Local development without tokens
• Quick testing and debugging
• Development environment setup
• Learning the API

Before going to production:

1. Re-enable "Require API Authentication"
2. Create proper access tokens
3. Remove any unauthenticated API calls from your code
4. Test with authentication enabled

Token Restrictions

Access tokens can be configured with security restrictions to limit their usage by IP address, HTTP referrer, and rate limits. These restrictions provide additional security layers for tokens used in different environments.

Configuration Options

Token restrictions are configured when creating a token via the API:

curl -X POST https://emailengine.example.com/v1/tokens \
  -H "Authorization: Bearer EXISTING_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "description": "Restricted API token",
    "scopes": ["api"],
    "restrictions": {
      "addresses": ["192.168.1.0/24", "10.0.0.5"],
      "referrers": ["https://myapp.com/*", "*.example.org/*"],
      "rateLimit": {
        "maxRequests": 100,
        "timeWindow": 60
      }
    }
  }'

IP Address Allowlist

Restrict token usage to specific IP addresses or CIDR ranges:

{
  "restrictions": {
    "addresses": ["1.2.3.4", "5.6.7.8", "192.168.0.0/16", "10.0.0.0/8"]
  }
}

Supported formats:

• Single IPv4 addresses: "192.168.1.100"
• Single IPv6 addresses: "2001:db8::1"
• CIDR ranges: "192.168.0.0/24", "10.0.0.0/8"

Requests from IP addresses not in the allowlist are rejected with 403 Forbidden and the message Unauthorized address. The address is the one the proxy configuration resolves, so behind a reverse proxy the trusted X-Forwarded-For value is what gets matched.

HTTP Referrer Patterns

Restrict token usage based on the HTTP Referer header. This is useful for tokens used in browser-based applications:

{
  "restrictions": {
    "referrers": ["*web.domain.org/*", "*.domain.org/*", "https://domain.org/*"]
  }
}

Pattern syntax:

• * matches any sequence of characters
• Patterns are matched against the full referrer URL
• Multiple patterns can be specified (any match allows the request)

Use cases:

• Restrict tokens to specific web applications
• Prevent token misuse if leaked
• Enforce origin-based access control

A request whose Referer header matches none of the patterns is rejected with 403 Forbidden and the message Unauthorized referrer.

Referrer Limitations

HTTP referrer restrictions can be bypassed by clients that do not send the Referer header or forge it. Use this as an additional layer of security, not as the sole protection mechanism.

Rate Limiting

Limit the number of API requests a token can make within a time window:

{
  "restrictions": {
    "rateLimit": {
      "maxRequests": 100,
      "timeWindow": 60
    }
  }
}

Parameters:

Parameter	Type	Description
maxRequests	integer	Maximum number of requests allowed in the time window
timeWindow	integer	Time window duration in seconds

Example configurations:

// 20 requests per 2 seconds (burst protection)
{ "maxRequests": 20, "timeWindow": 2 }

// 1000 requests per hour (daily limit)
{ "maxRequests": 1000, "timeWindow": 3600 }

// 100 requests per minute (standard rate limit)
{ "maxRequests": 100, "timeWindow": 60 }

When the rate limit is exceeded, requests are rejected with 429 Too Many Requests. The body carries ttl, the number of seconds until the window resets, and the response sets X-RateLimit-Limit and X-RateLimit-Reset. Requests that are within the limit carry the same two headers plus X-RateLimit-Remaining.

{
  "statusCode": 429,
  "error": "Too Many Requests",
  "message": "Rate limit exceeded",
  "ttl": 42
}

Combining Restrictions

All restriction types can be combined. A request must satisfy ALL configured restrictions:

curl -X POST https://emailengine.example.com/v1/tokens \
  -H "Authorization: Bearer EXISTING_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "account": "user123",
    "description": "Fully restricted frontend token",
    "scopes": ["api"],
    "restrictions": {
      "addresses": ["203.0.113.0/24"],
      "referrers": ["https://app.example.com/*"],
      "rateLimit": {
        "maxRequests": 50,
        "timeWindow": 60
      }
    }
  }'

Disabling Restrictions

Set any restriction to false to disable it:

{
  "restrictions": {
    "addresses": false,
    "referrers": false,
    "rateLimit": false
  }
}

Or omit the restrictions object entirely to create an unrestricted token.

See Also

• Command Line Interface (CLI) - Complete CLI reference for token management and administration
• Prepared Tokens - CLI commands, export/import, and automated deployment configuration
• API Authentication - Using tokens in API requests
• Account Management API - Managing email accounts with tokens
• Security Best Practices - General security guidelines for EmailEngine deployment
